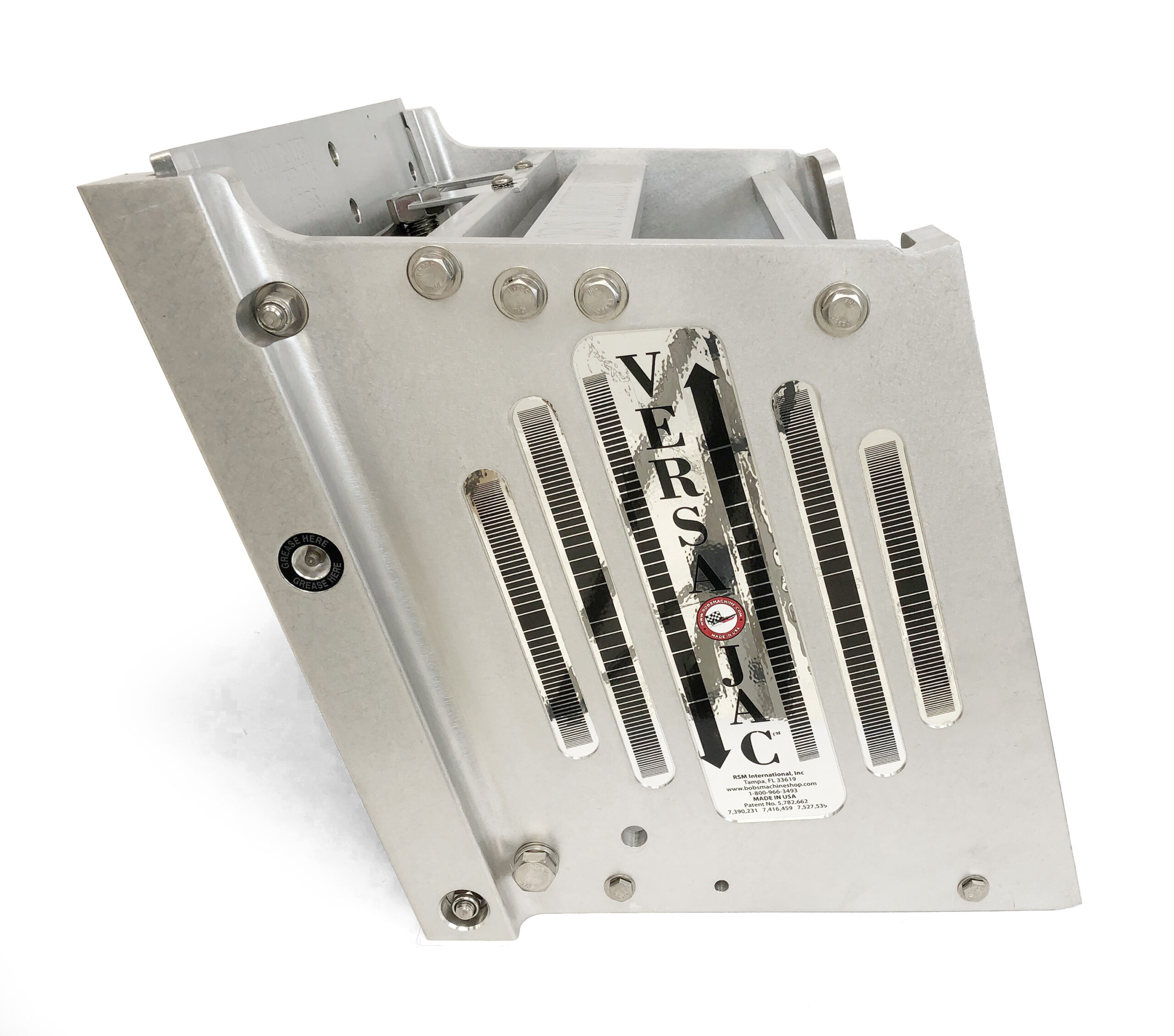

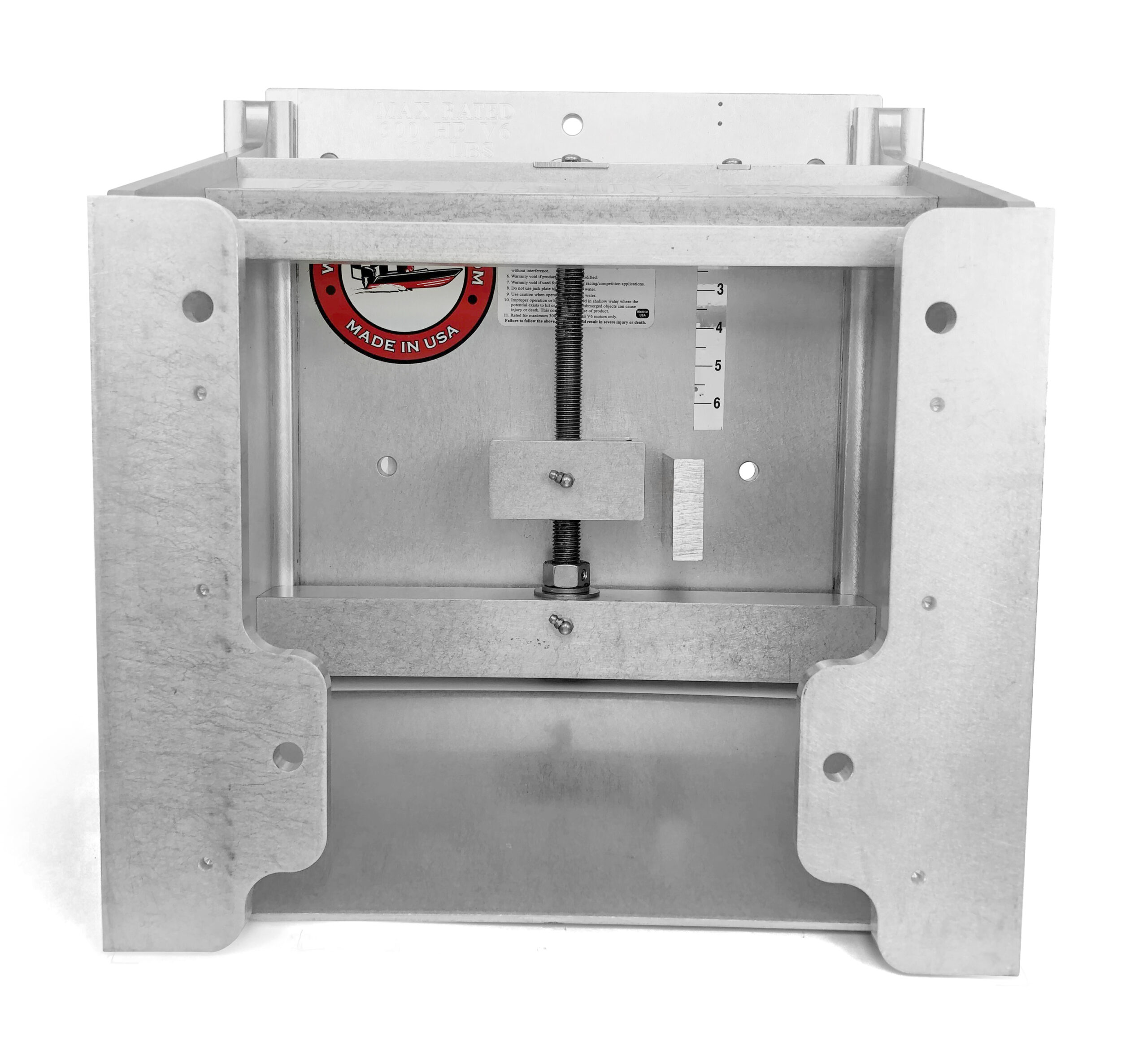

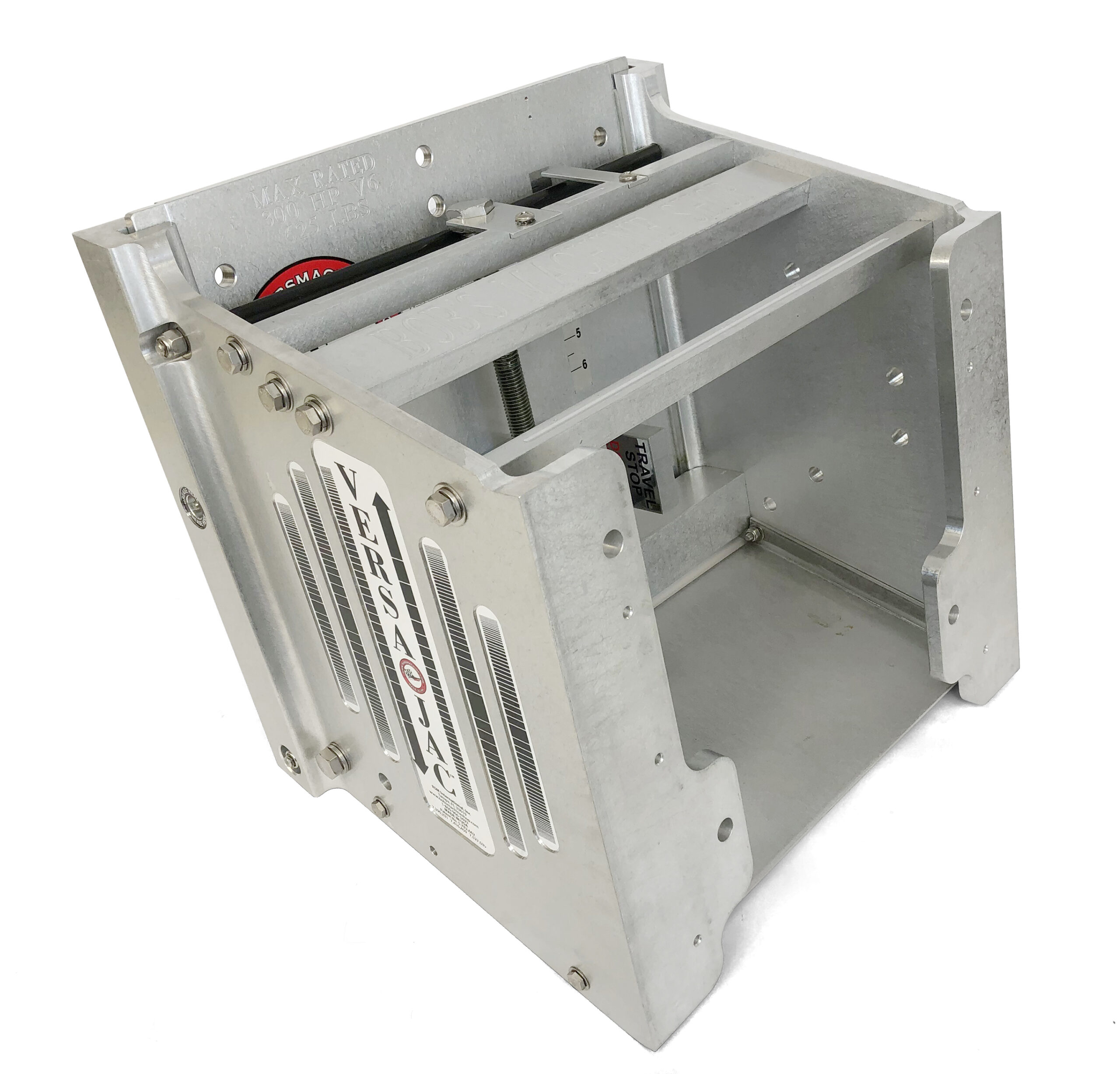

12″ Setback Versa Series Jack Plate (300 hp max)

Bob’s Machine Shop’s Versa Jac jack plate line, offers new technology in the Jack Plate market.  The first & only jack plate to offer an upgrade kit for boaters to convert to Hydraulic at a later date!
Made of high-quality, aircraft-grade aluminum, the patent pending Versajac™ has the same look as Bob’s popular line of hydraulic jacks. It is rated for engines up to 300 hp and is available in 4″, 6″, 8″, 10″, 12″ & 14″ setbacks as well as our mini jack plate line. Adjusting the jackplate for optimum results is easily done while the boat is in the water. When it’s time to upgrade from manual to all-hydraulic operation, converting the jack is simple. Using a few basic hand tools, remove the Versajac’s manual screw assembly and swap it out for the new hydraulic cylinder kit. Then install the pump inside the boat. All BMS’s hydraulic pumps are designed to mount inside for longevity and protection from the elements. Jack plates have “limited lifetime warranty” and pumps have a 5 year warranty (excluding water damage).
Bob’s Versa Jac,  Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.

Lifetime warranty on structure

Can be converted to Hydraulic if owner desires to change styles

Automotive grease nipples for easy lubrication

Tension rods

Made in USA, in our own factory in Tampa, Florida

Rated for 300HP, upto 625 lbs motors (heavier should use Extreme series)

Pre drilled for dual side mount Power Pole brackets.

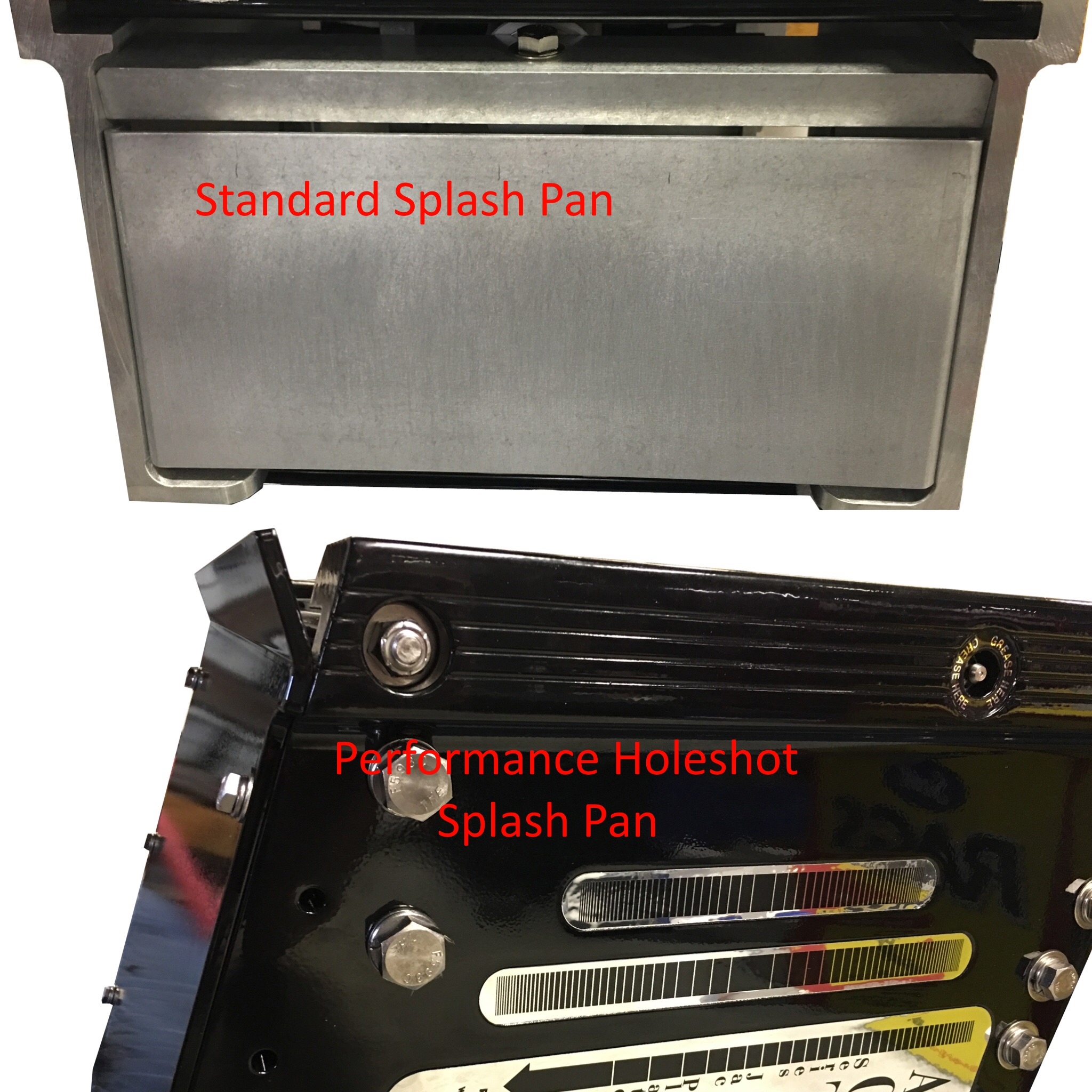

Comes with Standard Splash Pan, but can be upgraded to Performance Hole Shot model

SKU
Model
Weight lbs/kilo
Max HP/lbs
Setback in/cm

100-504000
4″ Light Versa
35/15
115/425
4/10

100-504100
4″ HD Versa
40/18
300/625
4/10

100-506000
6″ Versa
41/18
300/625
6/15

100-508000
8″ Versa
45/20
300/625
8/20

100-510000
10″ Versa
49/22
300/625
10/25

100-512000
12″ Versa
56/25
300/625
12/30

100-514000
14″ Versa
71/32
300/625
              14/35
